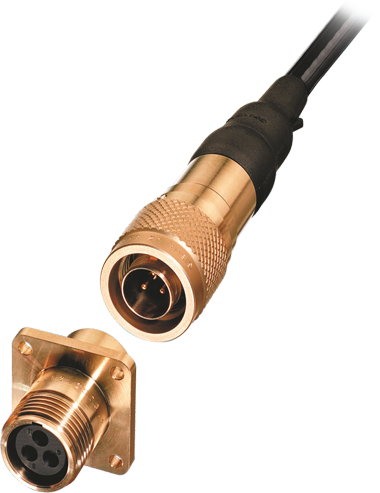

Series 24

Request

The series 24 watertight installation connectors with suitable endbells meet the requirements of safety classes IP 66 to IP 68. Connectors in modular design provide a robust connection technology for small design dimensions for a variety of applications.

In the sealing plane, only o-rings are used. With metal shells made of seawater and corrosion-resistant bronze, the series is also ideal for harsh environments. Crimp contacts enable quick and safe assembly.

Main fields of application are

  • industry applications
  • naval technology
  • shipbuilding
  • construction machines

Technical specifications

  • shell material seawater resistant bronze
  • modular design
  • inverse insulation fittings
  • watertight from IP 66 to IP 68
  • o-ring as interface sealing
  • secure metric locking thread
  • elastomer insulator with conical insulation barrier
  • contact arrangements 3 to 61 contacts
  • operating voltage up to 250 V
  • operating current up to max. 40 A
  • dry mating capability
