Series 60

SKU: dd1022a9c4e4 Categories: , ,

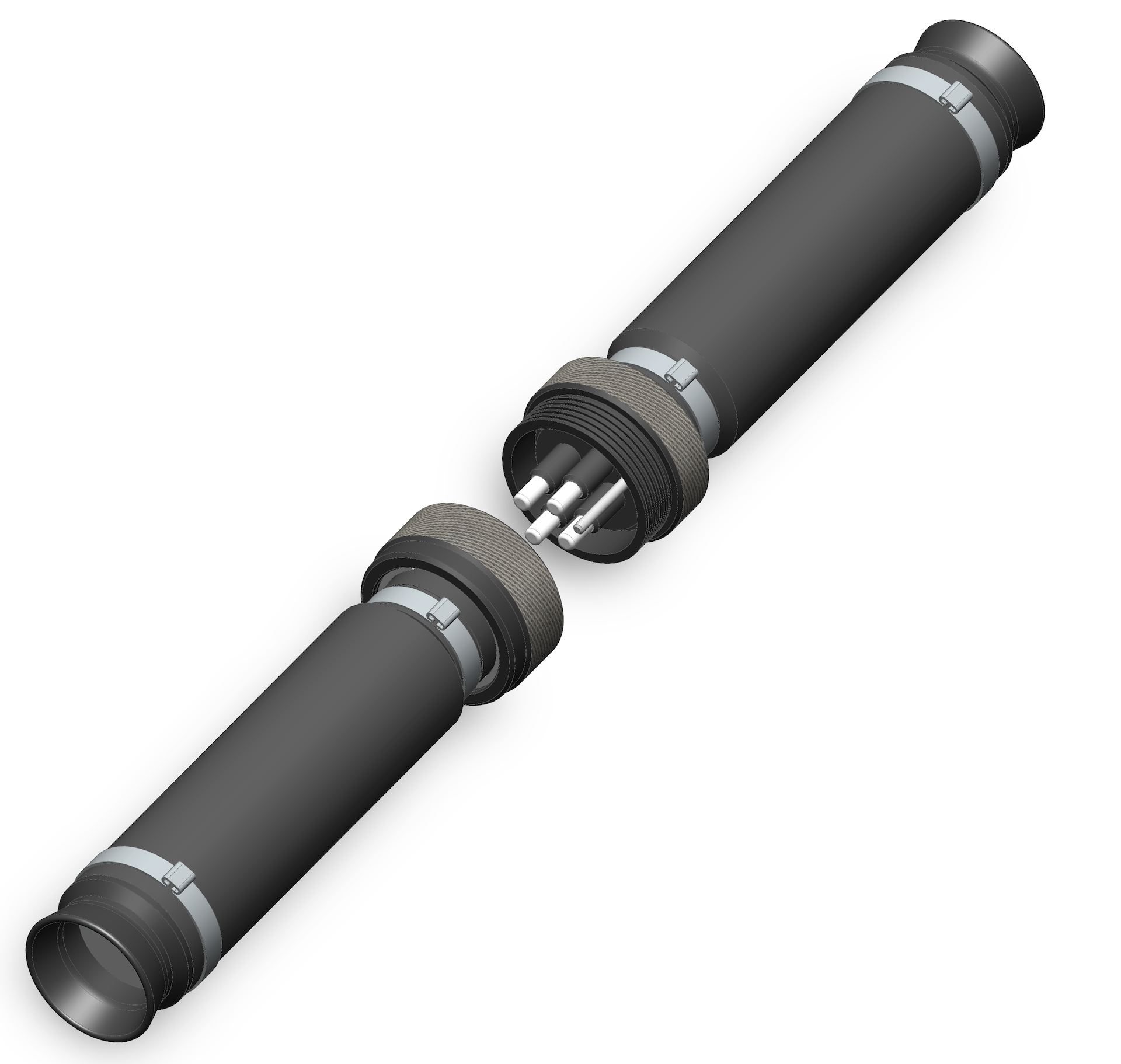

The robust elastomer connectors series 60 are designed for termination in the field and for an easy and fast extension of connection cables (1,5 mm² – 16 mm²) with polyurethane an elastomer outer sheath.

The connectors are dry and wet mateable. The series is available with a contact arrangement of 4 x Ø 5 mm contacts with additional poisoning pin. The contacts are nickel- or gold plated and the contact spring in the socket contact is slotted several times and fitted with a guide sleeve according to the GISMA principle.

The cable is sealed pressure watertight with a PUR cold moulding to the plug.

Main fields of application are

  • Industrial-application
  • marine research
  • renewable energy

Technical specifications

  • open face pressure watertight
  • wet pluggable
  • contact arrangements 4 contacts Ø 5 mm
  • operating voltage max. 500 volts
  • operating current up to 70 A
  • up to 50 bar pressure watertight
  • robust contacts
  • robust keyway



wet pluggable
