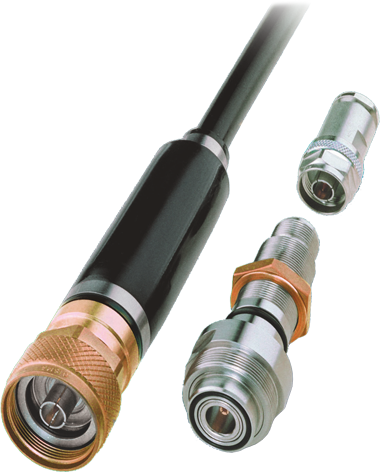

Series 51

The single-pole device penetrators with coax contacts series 51 provide a compact and attractively priced solution based on the N-standard for the system technology and they can be used for many coax cables. With the double o-ring seals in the mating area, the penetrators are predestined for long-term use underwater.

For the outboard plug, a moulding endbell with strain relief is recommended. This opens up the possibility of connecting an additional overall shield to the housing. On the device, side connector, the penetrator is designed to for a standard N-industrial connector.

Main fields of application are:

  • naval technology
  • marine research
  • industry applications

Technical specifications:

  • pressure watertight
  • shock tested
  • double o-ring-sealing in the mating area
  • longitudinally coax N-interface
  • operating voltage max. 500 V
  • operating current max. 8 A
  • test pressure up to 100 bar
  • impedance 50 Ohm
  • dry mating capability
  • shell material stainless steel 1.4404
  • penetrators with any mounting dimensions available
  • N-industrial plug on the device side
